SPECS:Registered 2015
FRONT AND REAR FENDERS, OIL TANK AND GAS TANK HIGHLY MODIFIED WITH STEEL RAISED PANELS
FRAME CUSTOM MID-USA SOFTAIL 0" STRETCH UP, 0 out, 30 DEGREE RAKE

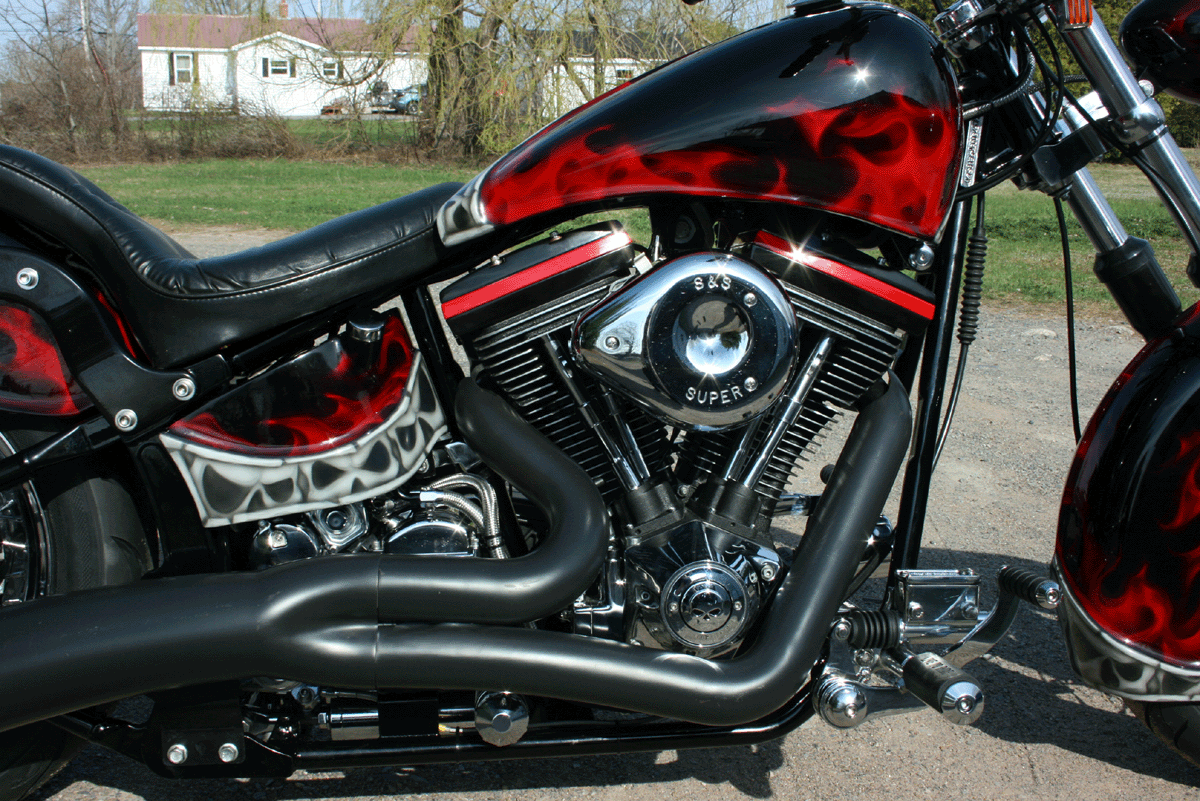

REBUILT NEW FROM TOP TO BOTTOM 80" EVO MOTOR, NEW: Rings, Ev46 cam, new lifters, adjustable pushrods,3 angle vavle job, 3 new rocker arm shafts, james gaskets, powder coated black rocker boxes, pigtails installed to eliminate base gasket leaks, all new bearings and seals from bottom to the top.
NEW CHROME OIL PUMP AND CAM COVER
S&S SUPER "E" CARB
VANCE AND HEINZ - GROUND POUNDER EXHAUST
CRANE SINGLE FIRE IGNITION SYSTEM, CHROME SINGLE FIRE COIL, TAYLOR RED SPARK PLUGS WIRES
HARLEY TRANSMISSION 5 SPEED, Rebuilt with new bearings and gasket and seals.NEW BAKER SHIFTER ASSEMBLY,
CUSTOM 1 1/4" T BARS, 10" RISE
ALL NEW ELECTRICS AND WIRING AND STARTER, BADLANDS SELF CANCELING SIGNAL LIGHT BOX
CHROME STARTER NEW - NEW STARTER DRIVE AND JACKSHAFT ASSEMBLY
PRIMARY CHAIN DRIVE AND CLUTCH - 2005 , OUTER PRIMARY BLACK POWDER COATED
CUSTOM ROUND PROFILE FRONT FENDER- CUSTOMIZED RAISED PANELS

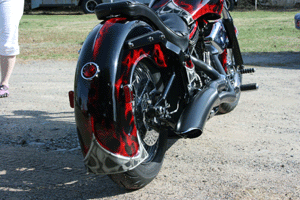

CUSTOM ROUND PROFILE REAR FRONT FENDER -CUSTOMIZED RAISED PANELS - SUNKEN TAILLIGHT.
OIL TANK - WRAP AROUND STYLE -CUSTOMIZED RAISED PANELS
STAINLESS STEEL BRAKE LINES
STAINLESS BRAIDED OIL LINES
ALL HARLEY BRAKES - 4 PISTON 2000 UP, ALL NEW BRAKE PADS
STAINLESS STEEL BRAKE ROTORS FRONT AND REAR
CUSTOM PMC FRONT OIL FILTER AND REGULATOR MOUNT
CUSTOM SIGNAL LIGHTS, REARS ARE ALSO BRAKE AND SIGNAL LIGHT
TIRES ARE NEW AVON VENOMS FRONT AND REAR 16", NEW TUBES
NEW RIMS FRONT AND REAR LACED WITH TWISTED SPOKES - NEW AXLES
CHROME 1996 UP HAND CONTROLS
MINI SPEEDO WITH INDICATOR LIGHTS, OIL, NEUTRAL, SIGNALS, HIGH BEAM
COBRA BUTTON TUCKED LOW PROFILE SEAT
41MM FRONT END HD - LOWER LEGS BLACK POWDER COATED, TOP TREES CHROME
BLACK POWDER COATED HEADLIGHT - THEN PAINTED AND CLEARED - CUSTOM PMC HEADLIGHT MOUNT
PMC MODIFIED CUSTOM STRETCHED 4.2 GALLON GAS TANK, SINGLE POP UP STYLE GAS CAP

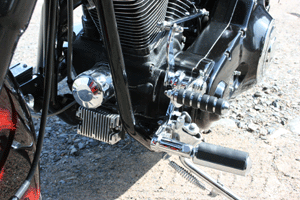

CHROME HEAVY DUTY CUSTOM FORWARD CONTROLS
NEW CHROME SHOCKS
NEW CHROME KICK STAND
SKULL POINT COVER AND DERBY COVERS
CUSTOM AIR CUSHION GRIPS
SHORTENED REAR FENDER STRUTS - BLACK POWDER COATED

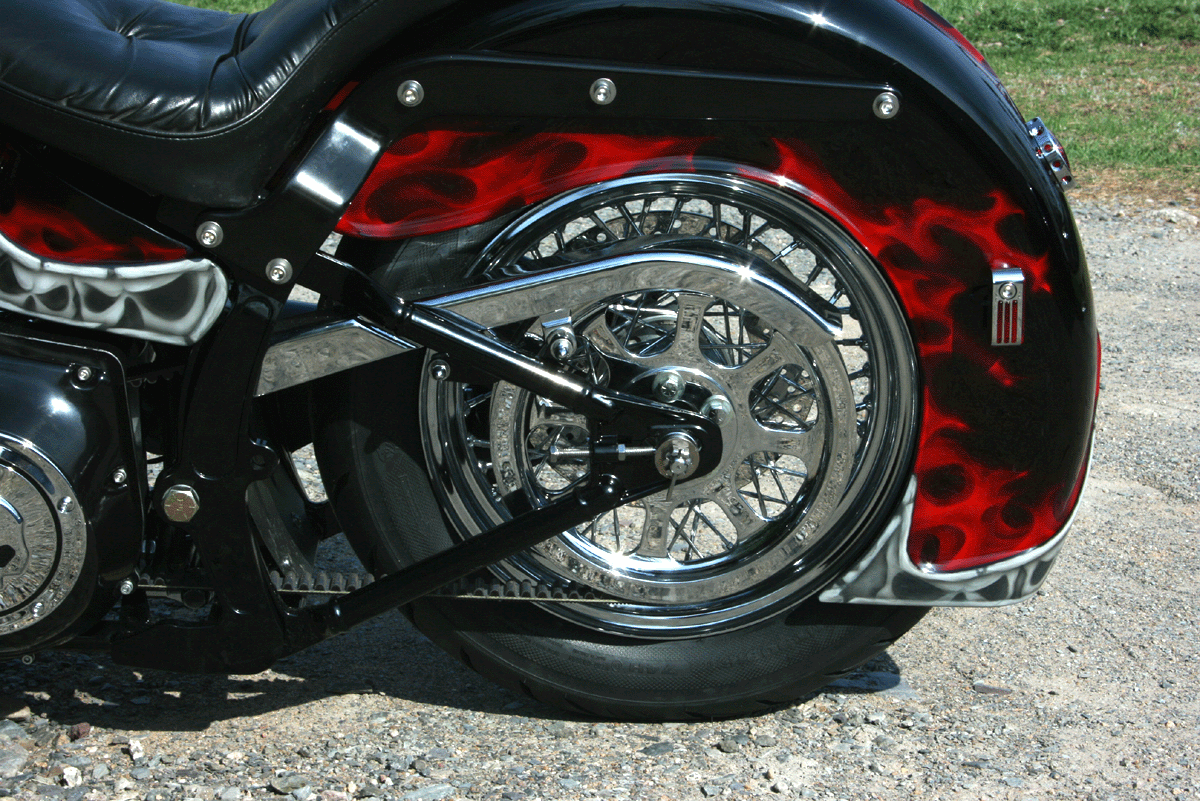

1 1/8TH NEW REAR BELT, NEW FRONT PULLEY, CHROME REAR PULLEY
CUSTOM PAINT BY "ZEKE"
