"Ground Pounder"

Pics below will open larger.Just click on them!

Getting things together

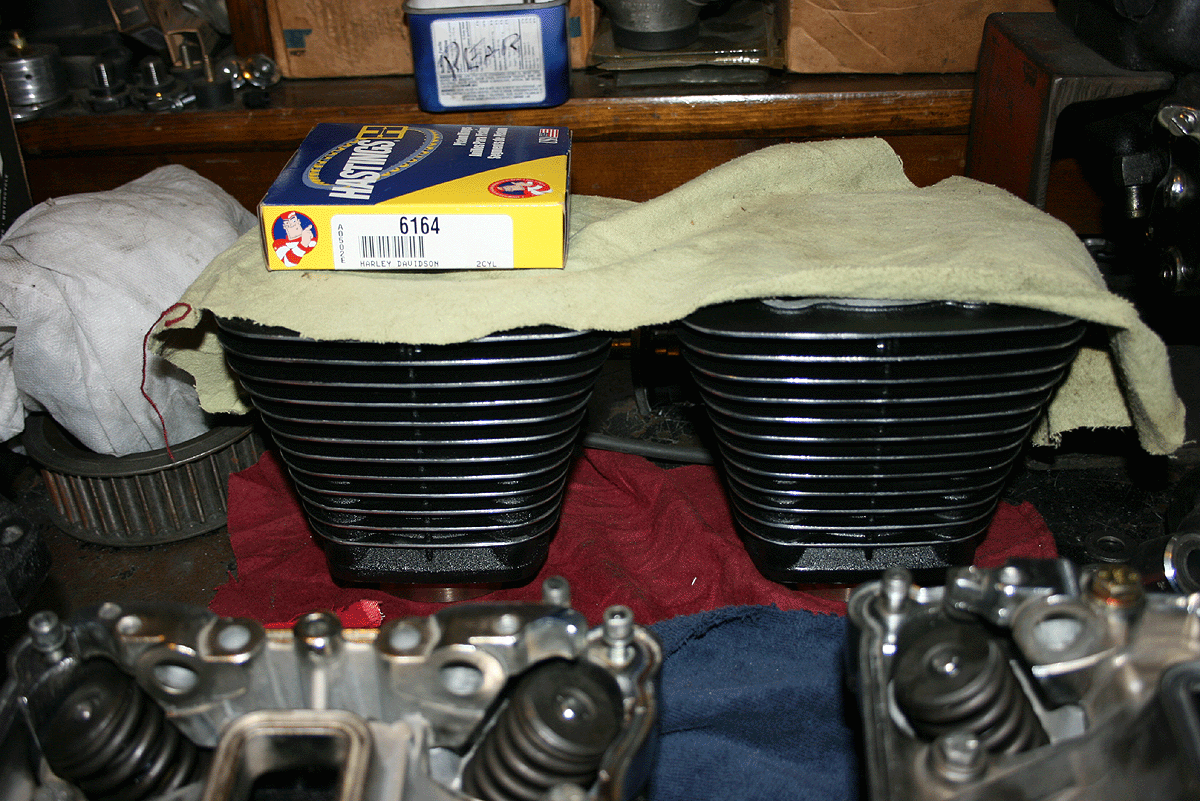

While the paints away its time to get other things done as well. So here is some progress. working on the engine now. Everything is painted and the fins have all been polished. Cylinders and heads look good and are coming together now.

The bottom end is all rebuilt and trued up and in the newly painted cases with new bearings and seals. Andrews EV46 cam is inside with the other gears and a brand new chrome oil pump as well.

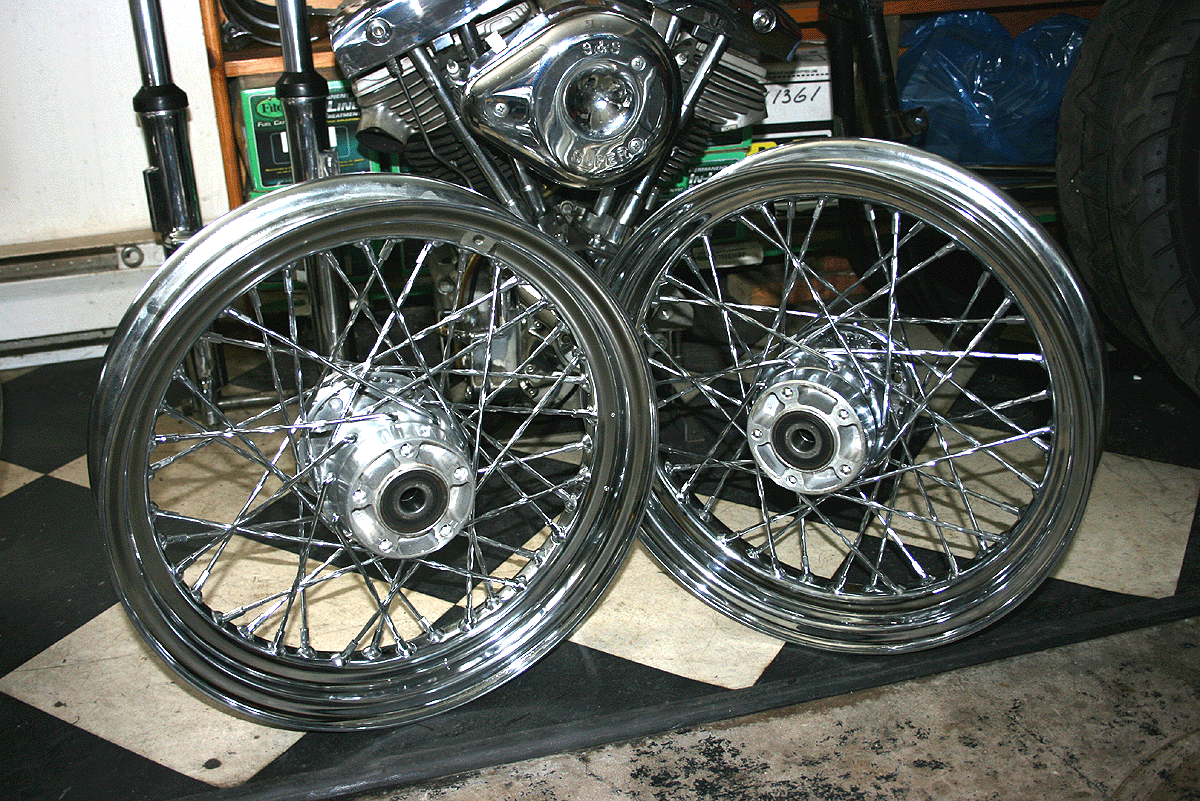

Got the wheels done and ready to go. Took some 2005 hubs that I had and laced them to new rims with twisted spokes installed to add some sparkle.

The paint should be back by the end of the month. Can't wait....




PAGE 1: Got to stat somewhere...CLICK HERE
PAGE 2: Starting the gas tank CLICK HERE
PAGE 3: Eliminating the fuel hole CLICK HERE
PAGE 4: Front and rear fender CLICK HERE
PAGE 5: Make the derbis deflector CLICK HERE
PAGE 6: Oil Tank CLICK HERE
PAGE 7: Gone for paint CLICK HERE
PAGE 8: A visit to Zeke's to check on progess CLICK HERE
PAGE 9: Engine and wheels CLICK HERE
PAGE 10: Oil filter and regulator bracket CLICK HERE
PAGE 11: Oil filter black powdered CLICK HERE
PAGE 12: Frame and Transmission CLICK HERE
PAGE 13: Oil Tank and gas tank CLICK HERE
PAGE 14: Painted fenders CLICK HERE
PAGE 15: Done - Spec SheetCLICK HERE
